Forearm and hand - deep dissection

SKU: MP1514

Price:
Sale price$1,300.03

Description

This forearm and hand specimen preserves a deep dissection from the distal humerus to the palmar surface of hand.d.

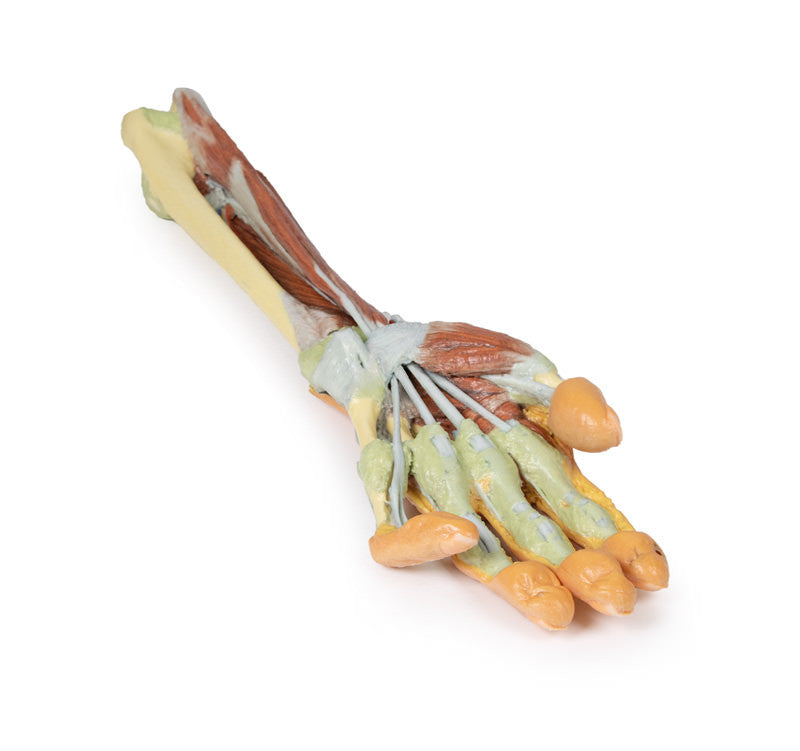

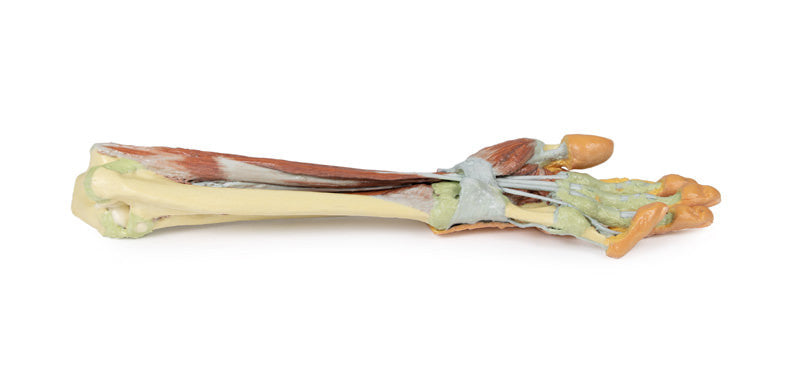

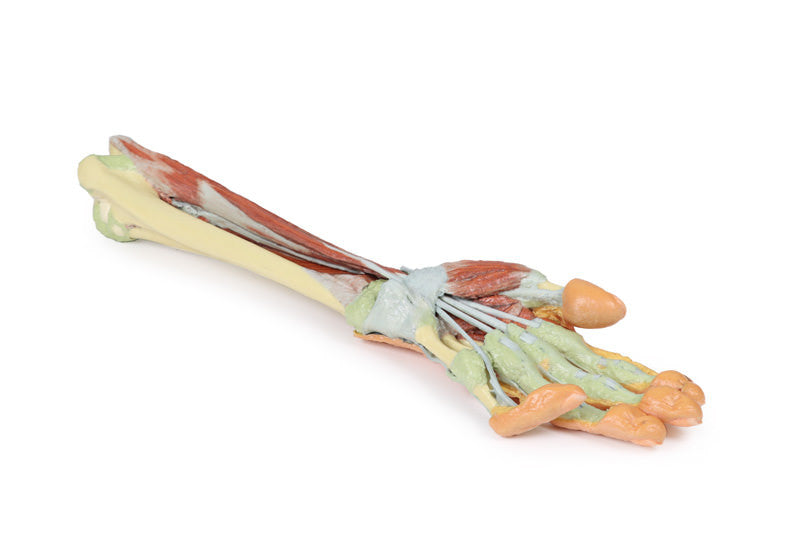

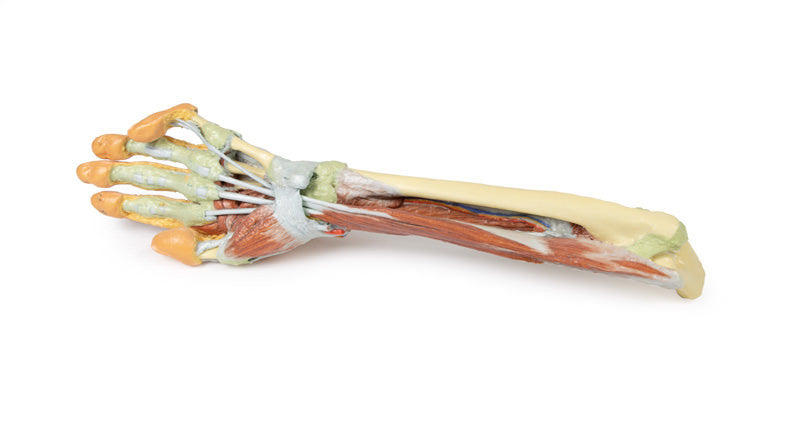

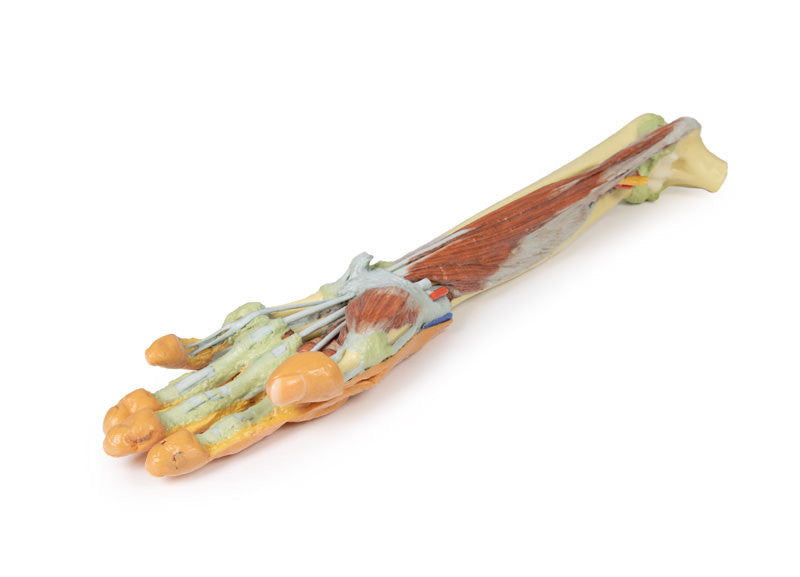

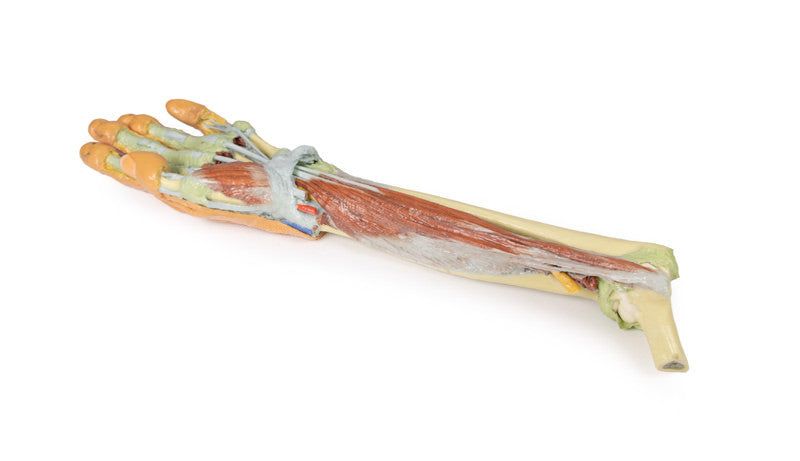

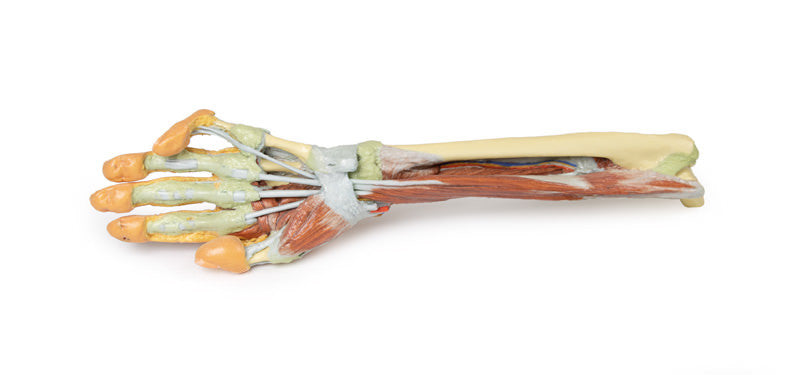

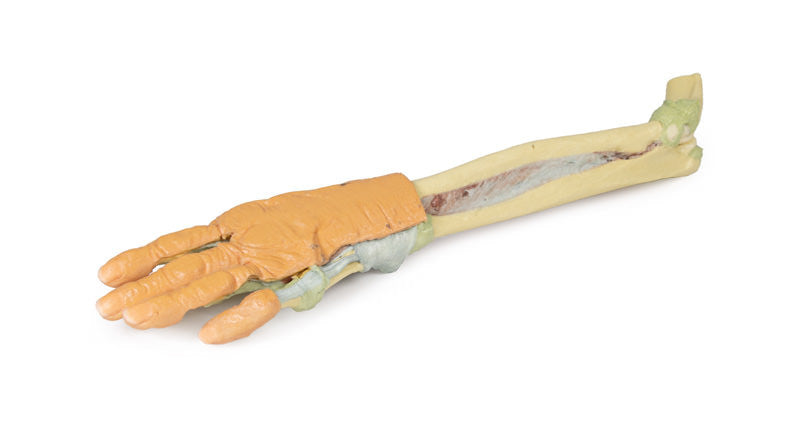

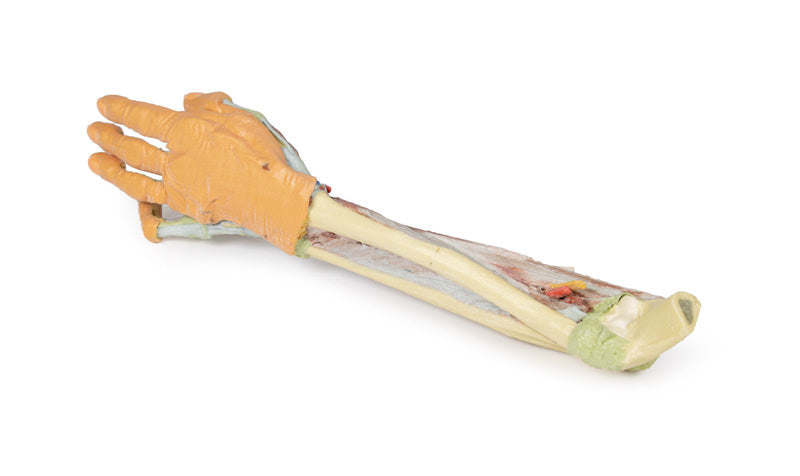

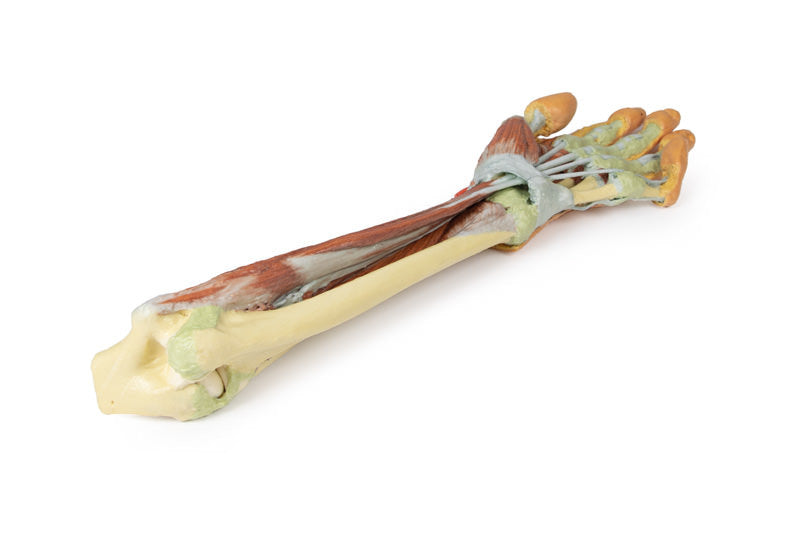

This 3D printed specimen of a left upper limb preserves a deep dissection from the distal humerus to the palmar surface of hand. The musculature surrounding the distal humerus has been removed except for the humeral origin of the flexor digitorum superficialis from the medial epicondyle. The elbow joint capsule has been dissected and opened anteriorly to demonstrate the articulation of the distal humerus, proximal radius and proximal ulna. The distal portion of the biceps brachii tendon and brachialis muscle is visible in the cubital fossa near the brachial artery, brachial vein, and median nerve. Most of the remaining neurovascular structures and musculature of the forearm have been removed to show the anterior interosseous artery, vein and nerve resting on the interosseous membrane and approaching the pronator quadratus muscle. With the surrounding musculature dissected the radial origin of the flexor digitorum superficialis is fully exposed, with the distal tendons passing deep to the flexor retinaculum as they pass to the dissected palmar surface of the hand. The distal insertions of the dissected forearm musculature (e.g., brachioradialis, flexor carpi radialis, flexor carpi ulnaris, extensor carpi radialis longus and brevis) and radial artery are visible at the wrist.

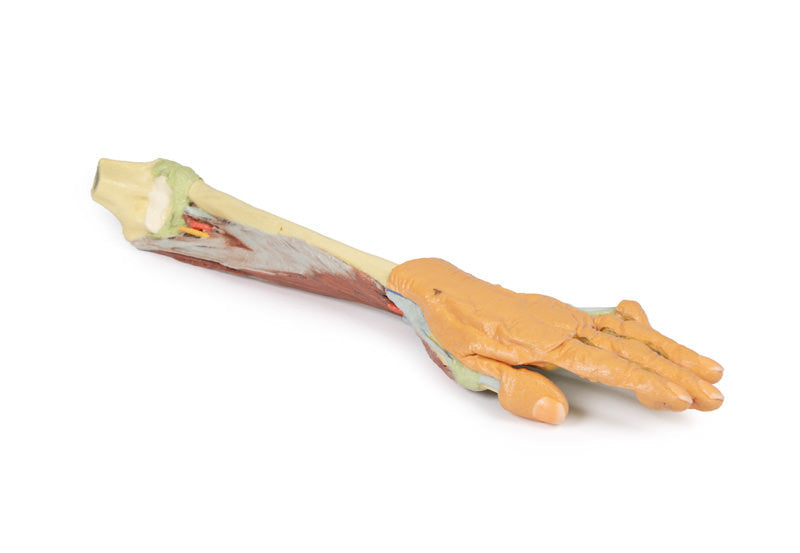

Within the hand, these tendons pass to their insertions through the fibrous sheaths of the digits (along with the preserved tendons of the flexor digitorum profundus). Laterally the flexor pollicis longus tendon passes to the first digit surrounded by the thenar eminence musculature, while medially the fibrous sheath of the fifth digit has been dissected. The deep dissection of the hand also demonstrates the transverse and oblique heads of the adductor pollicis, as well as the palmar view of the first dorsal interosseous muscle. The skin on the dorsum of the hand has been largely retained, but has been dissected medially to demonstrate the course of the extensor digitorum and extensor digiti minimi tendons, as well as the extensor expansion.

Please note that all of these items are produced upon order and do require roughly 4 - 6 weeks for delivery. All items are produced in Germany. We will provide updates on delivery timeframes upon order.

Erler-Zimmer Authorized Distributor


Produced by Erler Zimmer. Learn about their story.
Products are backed by a 3 year warranty.
