SKU: NLP1530
Price:
$37,704.30

Item requires 8 - 10 weeks for delivery

This product may have special pricing or delivery considerations which requires a quote.

Get a Quote

Description

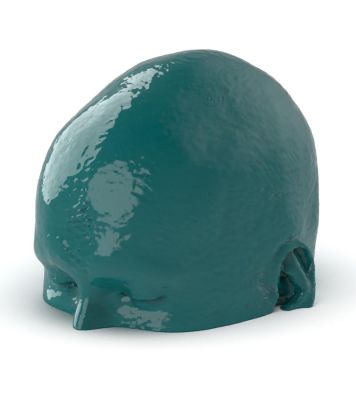

This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). It covers the vertex to the foramen magnum.

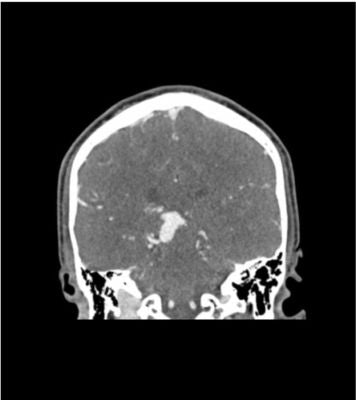

The phantom has 10 low-contrast lesions in the centrum semiovale and the right hemisphere has an arteriovenous malformation.

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue. Air voids are filled with a cellulosepolymer composite of approx. -160 HU.

Diagnostic features:
• Realistic simulation of head vessels, bone and soft tissues.
• Arteriovenous malformation of the right hemisphere.

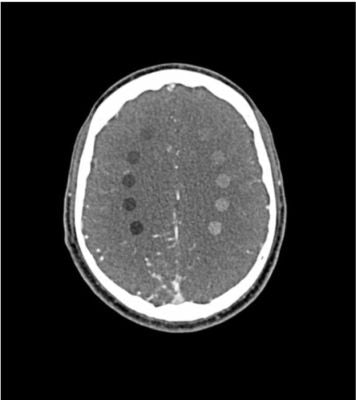

• 5 rod-shaped lesions on each side in the centrum semiovale at the periventricular and supraventricular level.

Erler-Zimmer Authorized Distributor


Produced by Erler Zimmer. Learn about their story.
Products are backed by a 3 year warranty.
